Nuova Imas

M-MR

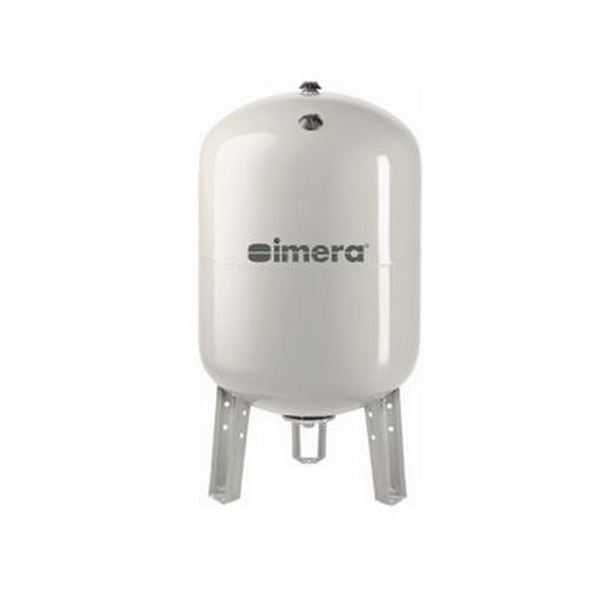

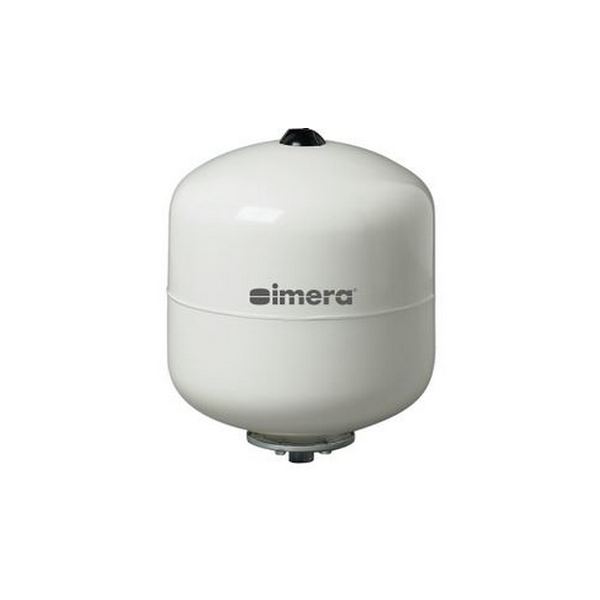

Expansion tank M-MR

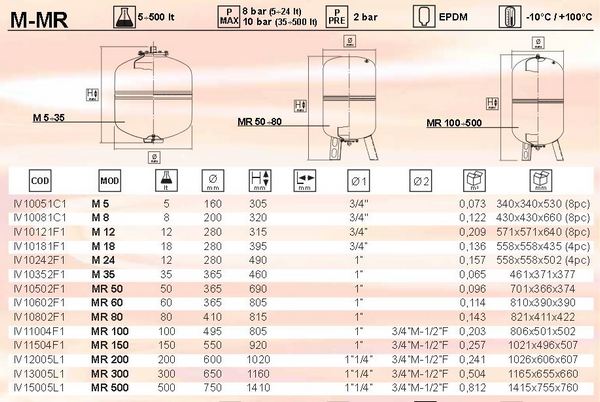

Code Name Description
IV10051C1 Expansion tank M 5 5 160 305 3/4" 0,073 340x340x530 (8pc)
IV10081C1 Expansion tank M 8 8 200 320 3/4" 0,122 430x430x660 (8pc)
IV10121F1 Expansion tank M 12 12 280 315 3/4” 0,209 571x571x640 (8pc)
IV10181F1 Expansion tank M 18 18 280 395 3/4” 0,136 558x558x435 (4pc)
IV10242F1 Expansion tank M 24 24 280 490 1” 0,157 558x558x502 (4pc)
IV10352F1 Expansion tank M 35 35 365 460 1” 0,065 461x371x377
IV10502F1 Expansion tank M 50 50 365 690 1” 0,096 701x366x374
IV10602F1 Expansion tank M 60 60 365 805 1” 0,114 810x390x390
IV10802F1 Expansion tank M 80 80 410 815 1” 0,143 821x411x422
IV11004F1 Expansion tank M 100 100 495 805 1” 3/4”M-1/2”F 0,203 806x501x502
IV11504F1 Expansion tank M 150 150 550 920 1” 3/4”M-1/2”F 0,257 1021x496x507
IV12005L1 Expansion tank M 200 200 600 1020 1”1/4” 3/4”M-1/2”F 0,241 1026x606x607
IV13005L1 Expansion tank M 300 300 650 1160 1”1/4” 3/4”M-1/2”F 0,504 1165x655x660
IV15005L1 Expansion tank M 500 500 750 1410 1”1/4” 3/4”M-1/2”F 0,812 1415x755x760
