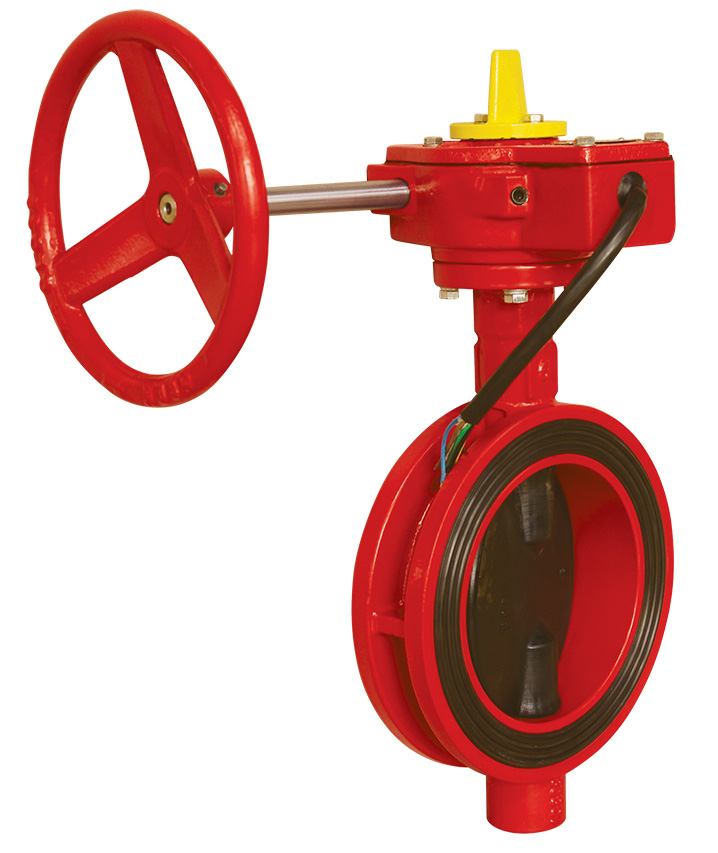

Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs

2113

Wafer type butterfly valve with gear-box and limit switch. PN 10/16. ANSI 150 lbs

Body made of ductile iron GGG.40. Disc: D.I + EPDM.
Design according to API 609.
Face to face according to ASME B16.10.
Working pressure 300 PSI. Working temperature: 0ºC +80ºC.
UL/FM certification.
